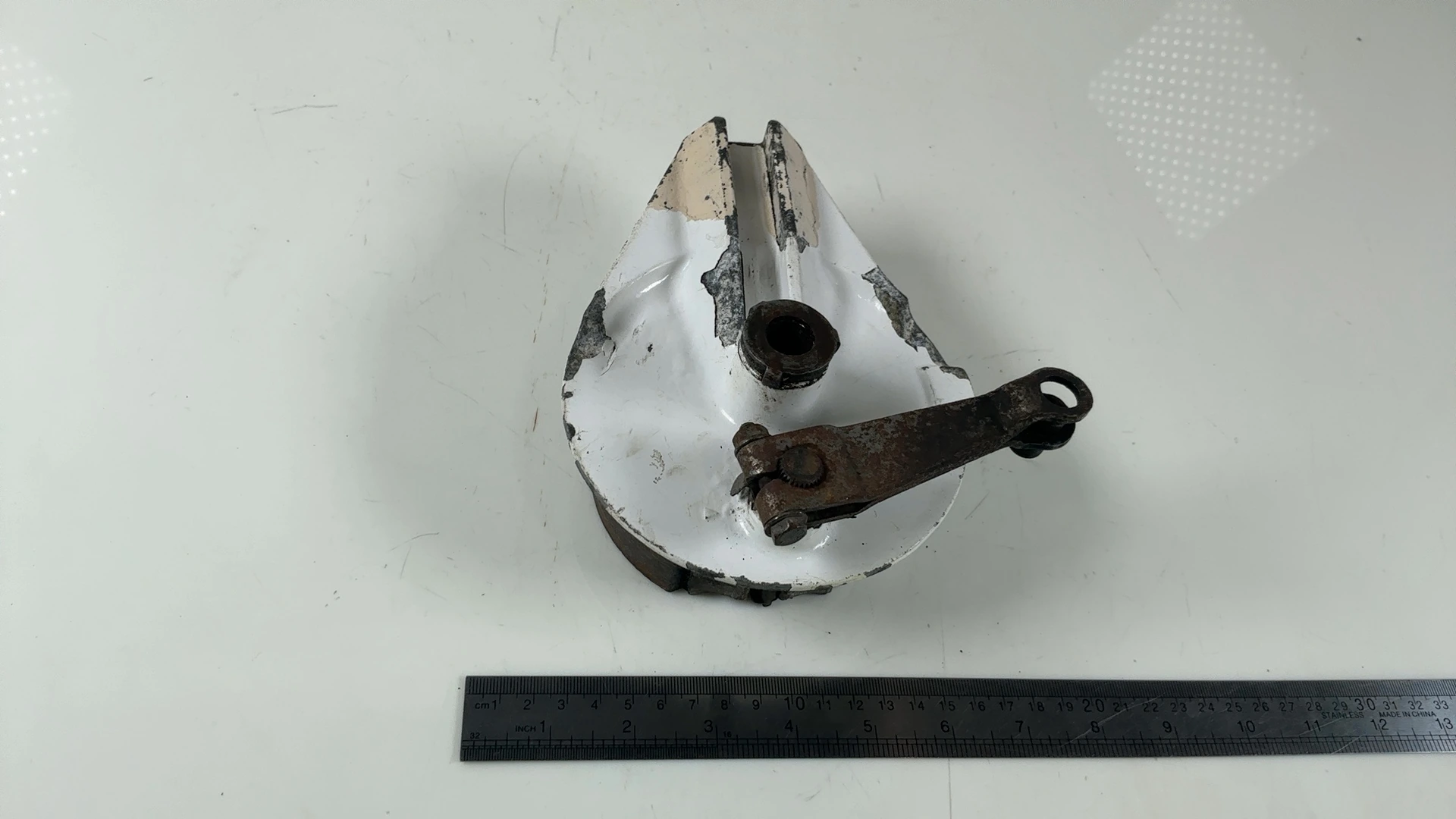

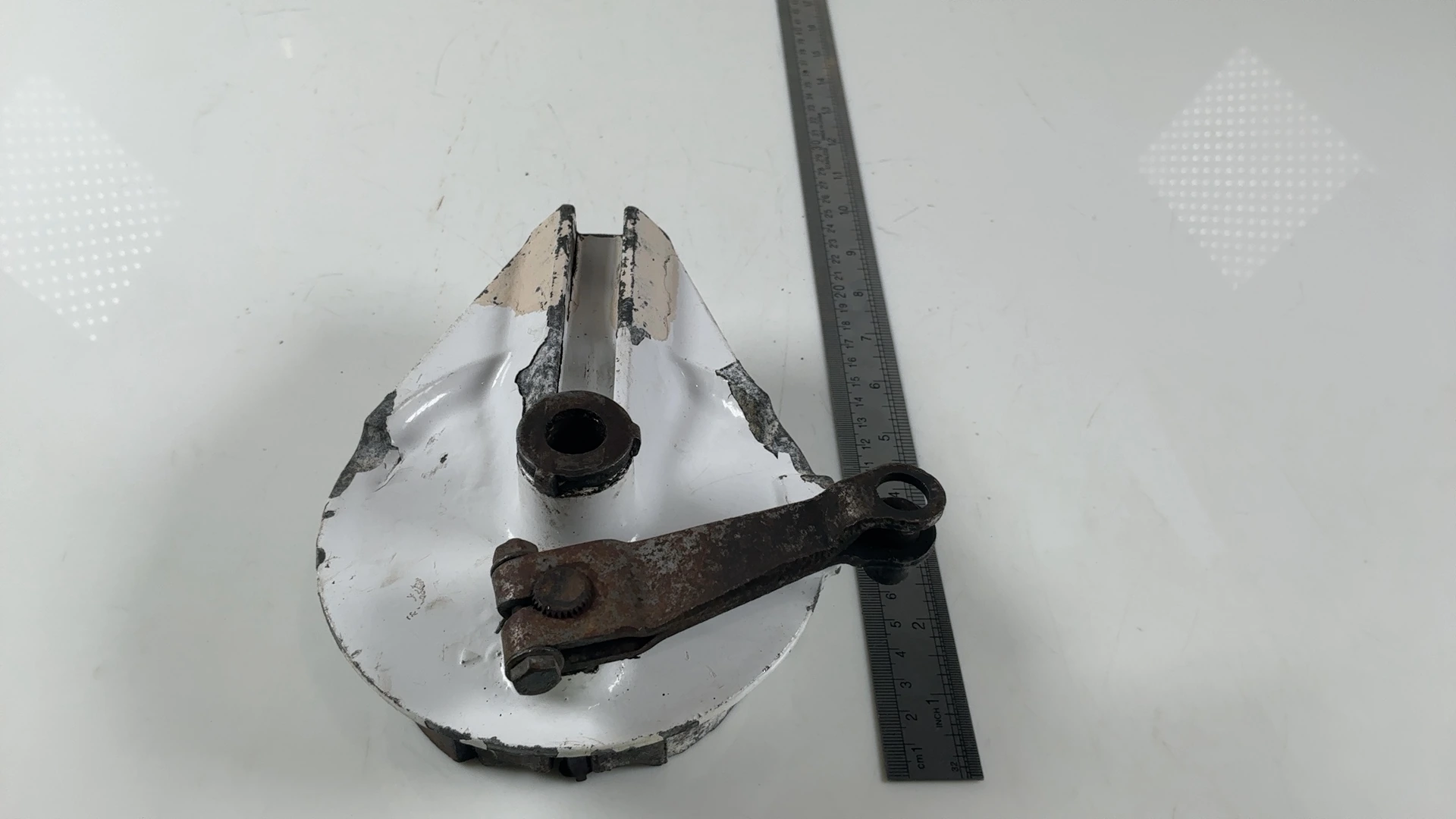

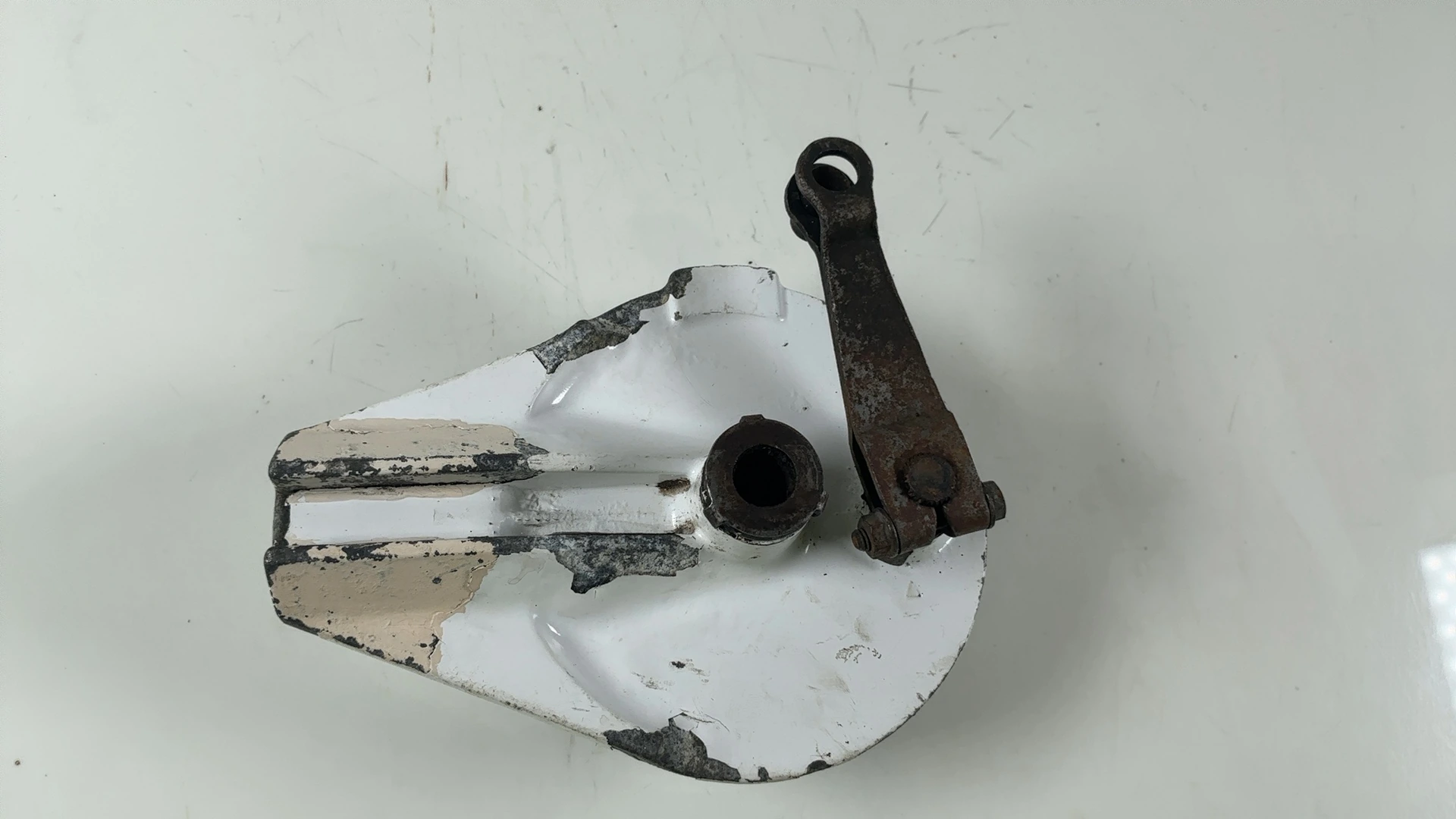

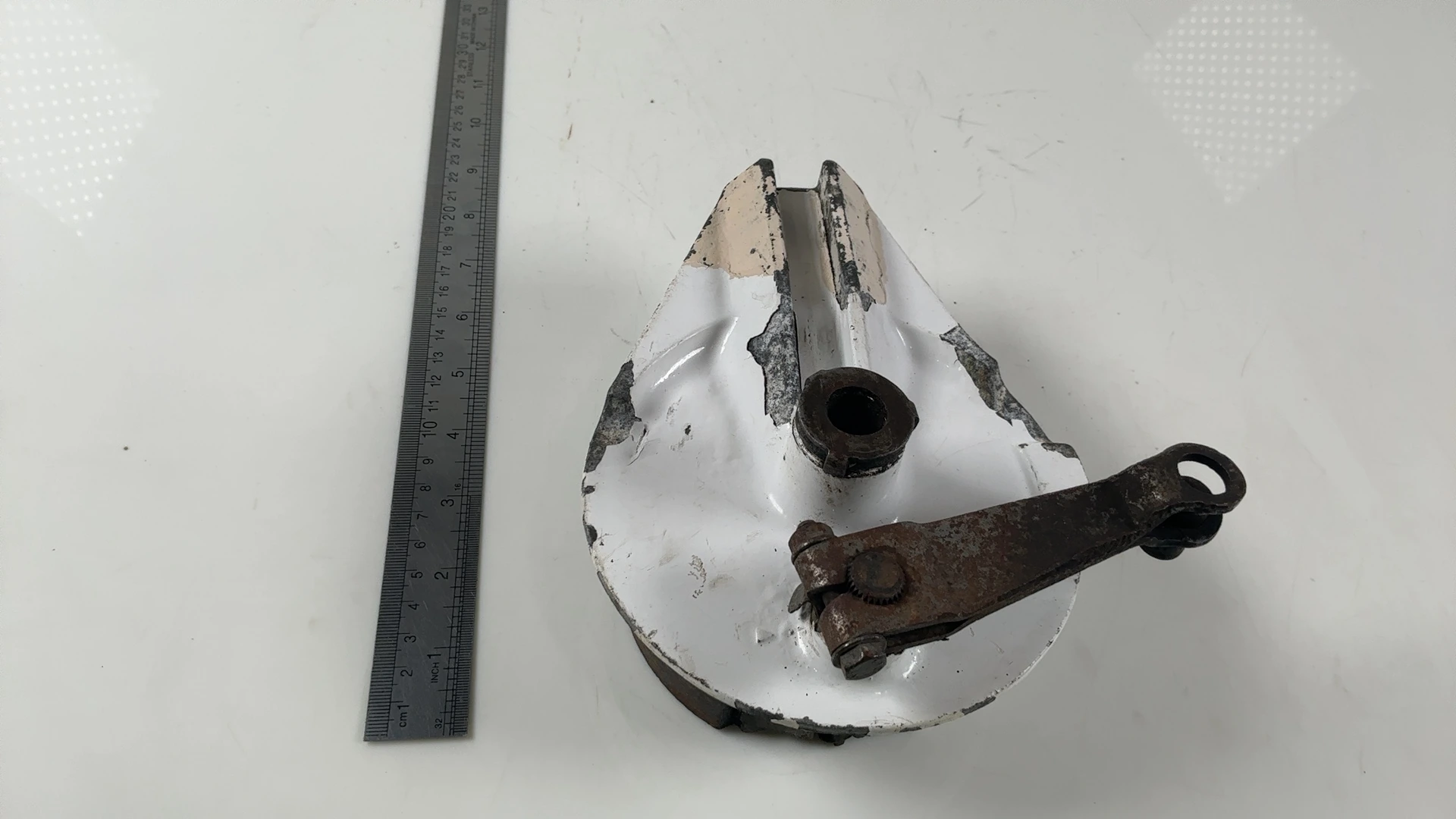

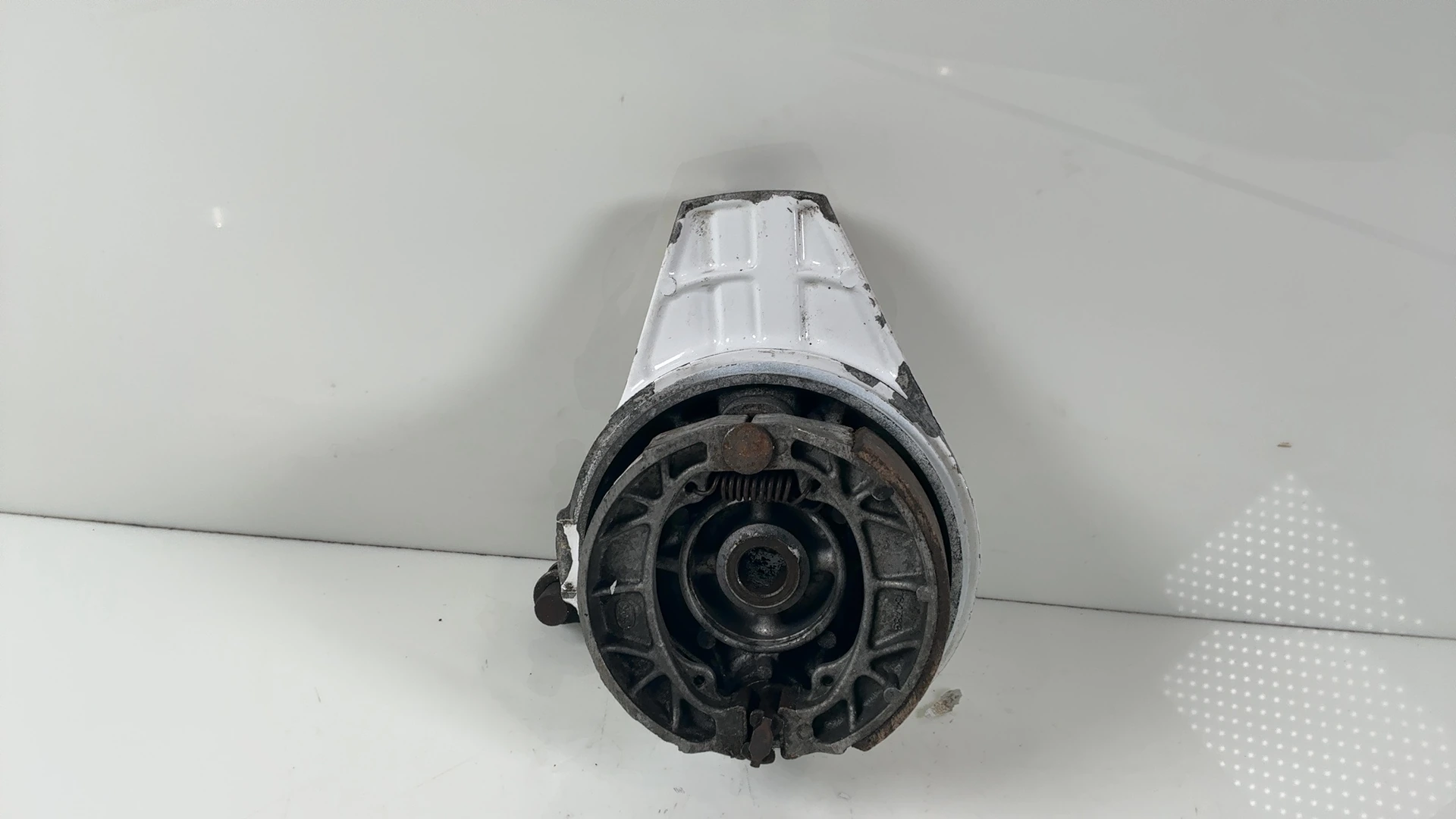

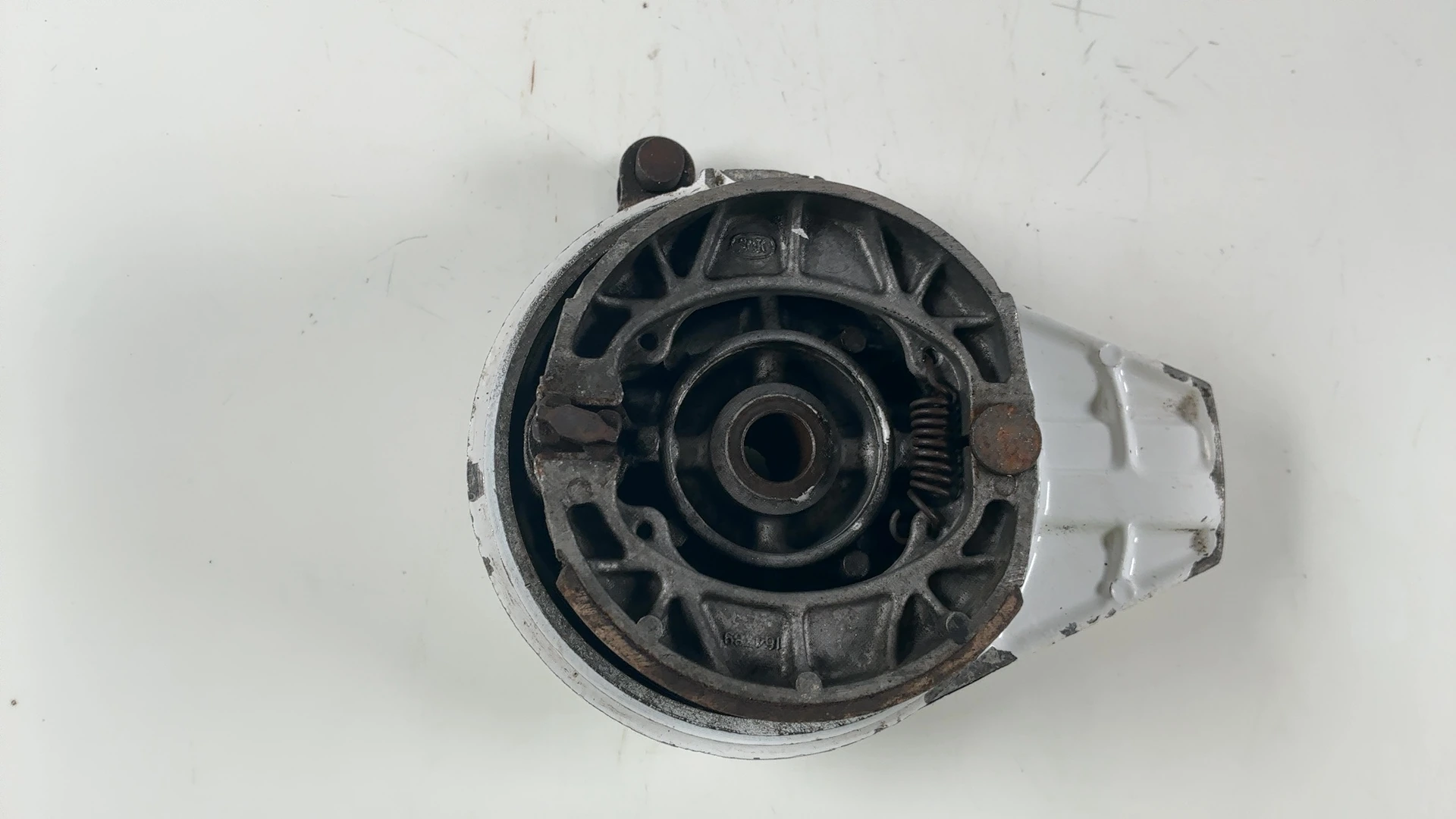

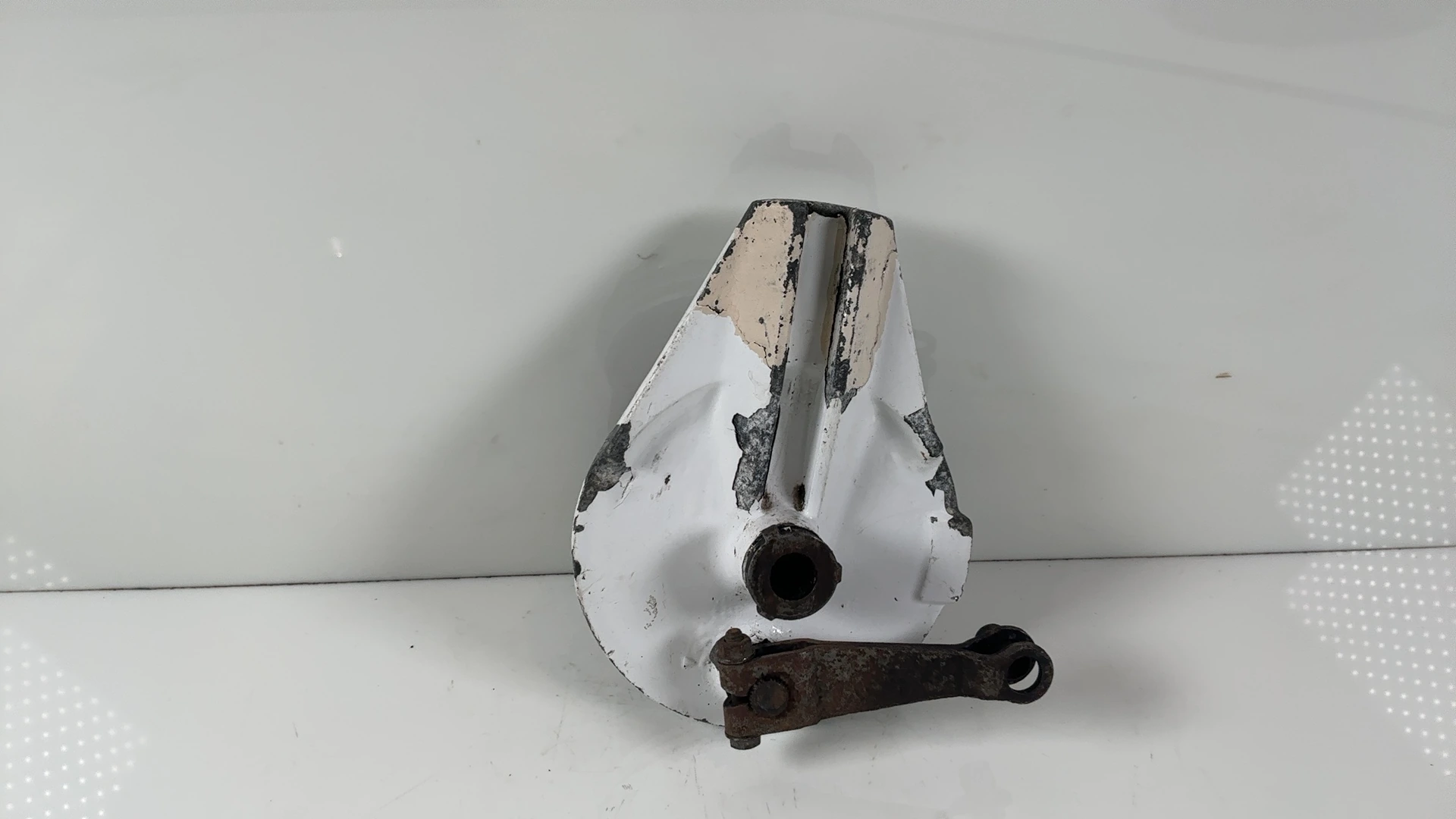

Authentic OEM Honda rear drum brake backing plate assembly with internal brake shoe carrier mechanics and external actuator arm. This cast aluminum backing panel forms the main support for the rear mechanical drum braking system, helping shield the internal friction parts from debris while housing the expansion cam that presses the brake shoes against the wheel drum hub. Part Type: Rear Brake Backing Plate / Panel Hub Assembly Material: Heavy-duty cast aluminum housing with steel linkage components Included Components: Main backing plate, brake actuator lever arm, pivot cam shaft, and internal shoe retention clips/anchors. Compatible Models & Fitment Guide This KBS casting is made for first generation Honda lightweight sport models: Honda NSR125R JC20: 1988, 1989, 1990, 1991, 1992 Honda NSR125F JC20: 1988, 1989, 1990, 1991, 1992 Fitment Note: Fits only JC20 chassis with rear mechanical drum brakes. It will not fit later JC22 models from 1993 onward using rear hydraulic disc brakes.
Please verify compatibility with your specific motorcycle model before purchasing.
Cleaning Status
partially_cleaned
Cleaning Notes
Used degreaser
